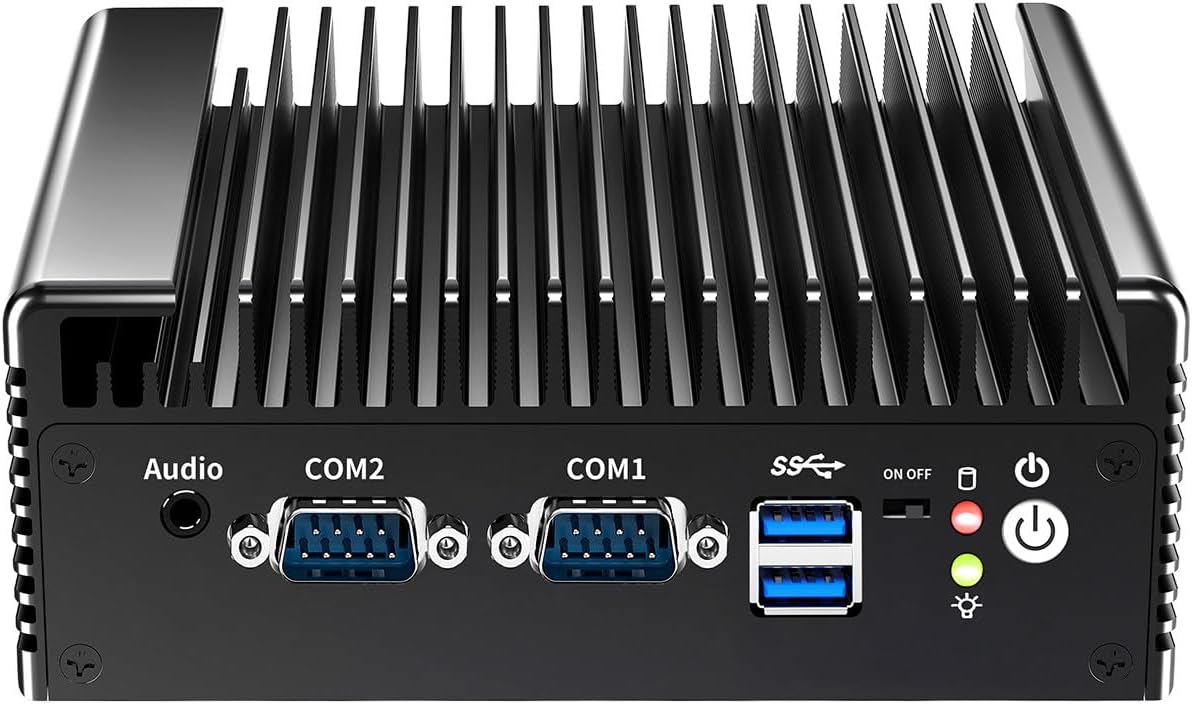

Industrial Mini PC I5 8250U,COM RS232/RS485,2xGigabit LAN,4×USB 3.0,DDR3 1*M.2 NVMe,Micro Router Appliance Support Home Office OPNsense,AES-NI,M.2 WiFi Slot，M.2 4G/5G Slot,NO RAM NO SSD
Product details
| Management number | 239779853 | Release Date | 2026/07/14 | List Price | US$80.00 | Model Number | 239779853 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification Processor:Intel Skylake Core6，7,8th generation CPU optional BIOS:AMI EFIBIOS call auto start, PXE，WOL Memory:1*SODIMM DDR3L 1600MHz Max 16G GPU:Intel HD Graphics 520 Display(Multi display support):1*HDMI1.4 4K 30Hz;1*DP1.2 4K60Hz Storage:1*SATA3.0 6Gb/s;1 * M.2Key-M interface, supporting 2280 PCIe/SATA adaptive SSD Network:2 * Realtek RTL8111H Gigabit Ethernet Port (either LAN2 or 2 * USB2.0, default LAN) USB:4* USB 3.0& 2* USB 2.0 DB9:2 * COMRS232 (Jumping supports RS485) (expandable COM3-COM4 built-in pins) Audio:Onboard ALC897+NS4251 (supported by SPK1) 3W@4 Ω； 1.7W@8 Ω max) Extended interface:1*M.2 Key E,Supports Wifi+Bluetooth, 2230mm;1*M.2 Key B,Supports 4G/5G modules, 3042/52mm;1* Micro SIM;GPIO,Supports 4-channel input and 4-channel output HGPIO;1 * VGA pin 1080P 60Hz Call to power on:1 * SWCH-ONOFF (incoming call auto start switch) Power supply:DC12V-19V 5.5 * 2.5mm in board 1 * 2Pin power interface Working temperature/humidity:0-60 degrees Celsius/5-95% RH, relative humidity, no condensation Storage temperature/humidity:-15-75 degrees Celsius/5-95% RH, relative humidity, no condensation PCB size:120mm× 120mm Chassis size:148*126*56mm
- ◆Powerful I5-8250U Processor: 8250U Processor, 4 Cores 8 Threads, 6M Cache, up to 3.4 GHz, TDP 15 W. Compatible with OPNsense, Linux,Win 10, ESXI, OpenWrt and other systems. AMI EFI BIOS auto start upon incoming call, PXE，WOL
- ◆Dual 1GbE LAN: Mini Router PC with 2*Realtek RTL8111H network card chip full UDE 1000M with filter connector.Soft Router can monitor network data, improve network security, powerful and widely used.1*M.2 Key E,Supports Wifi+Bluetooth, 2230mm;1*M.2 Key B,Supports 4G/5G modules, 3042/52mm;1* Micro SIM;
- ◆DDR3 Memory & Large Storage Capacity: Firewall box computer with 1 x DDR3 SO-DIMM memory 1600MHz, 1*SATA3.0 6Gb/s;1 * M.2Key-M interface, supporting 2280 PCIe/SATA adaptive SSD
- ◆UHD Graphics & Dual Display: 8250U processor integrated UHD Graphics, HD and DP dual display interfaces support 4K@60Hz.
- ◆Rich interfaces: 2 x1000M Realtek LAN,4 xUSB3.0, 2 xUSB2.0, HDMI,DP,AUDIO,2 RS232 COM(Jumping supports RS485) supports data storage and system boot.
| ASIN | B0H6WB6CPQ |
|---|---|
| Brand | UDPTCP |
| RAM Type | DDR4 SDRAM |
| Model Name | KW-I5-8250U-2C-2L |
| Manufacturer | UDPTCP |
| Memory Speed | 1600 MHz |
| Model Number | KW-I5-8250U-2C-2L |
| BuiltIn Media | Water Cooling |
| Cooling Method | FAN |
| Processor Brand | Intel |
| Processor Count | 1 |
| Processor Speed | 1.6 GHz |
| Total Usb Ports | 6 |
| Video Processor | Intel |
| CPU Model Number | 8250U |
| Operating System | Windows |
| Processor Series | Core i5 |
| Processor Socket | FCBGA1356 |
| Graphics Ram Type | L2 cache |
| Memory Clock Speed | 1600 GHz |
| Hard Disk Interface | Serial ATA |
| Graphics Coprocessor | Intel UHD Graphics |
| Graphics Description | Integrated |
| HumanInterface Input | Mouse |
| Warranty Description | One year warranty |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR3 |
| CPU Model Speed Maximum | 3.4 GHz |
| Graphics Card Interface | Integrated |
| Ram Memory Maximum Size | 16 GB |
| Specific Uses For Product | Everyday Use |
| Display Resolution Maximum | 3840x2160 |
| Total Number of HDMI Ports | 1 |
| Personal Computer Design Type | Mini PC |
