Inline Interface Card PCIe x1 to 2X PCI 32-Bit, PCI Slot Expansion for Old Cards, No Driver, 76619K

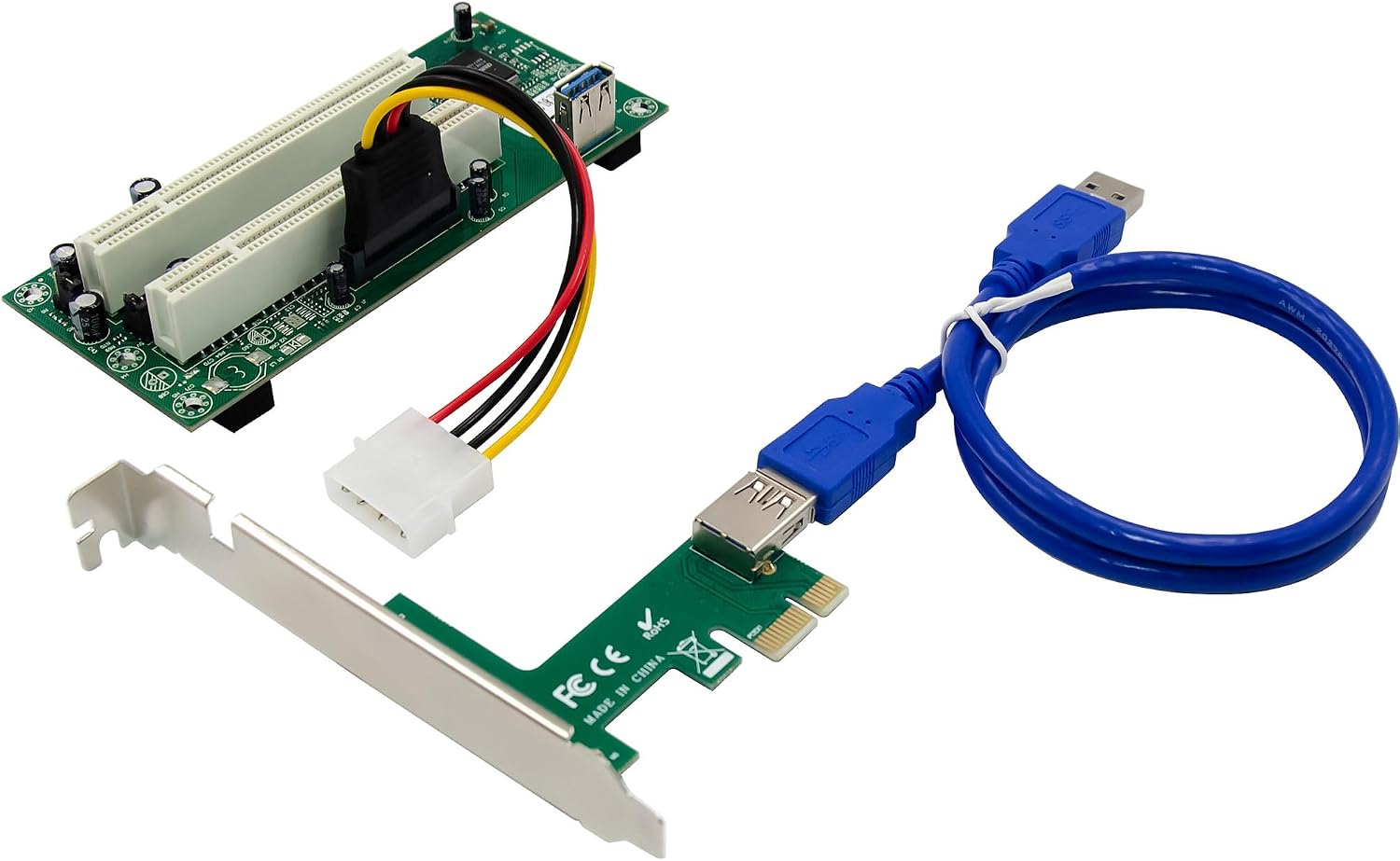

With the InLine PCIe x1 to 2x PCI 32-bit interface card, you can expand modern computers with two classic PCI slots. The system consists of a PCIe main card with ASMedia ASM1083 bridge chip and an additional card that is connected via a 60 cm cable. This makes it ideal for reusing legacy but functionally relevant PCI expansion cards – for example in industrial PCs, test systems or special applications where PCIe is not a replacement. The card is driverless and is compatible with a wide range of operating systems, including all Windows versions from XP and Linux kernel from version 2.4. The power is supplied via a standardized SATA 15-pin connector, which allows easy integration into existing setups. The PCI signals are reliably transmitted through the connection cable to the additional card, on which two 32-bit slots are available. Whether in professional environments or ambitious self-building: This solution offers a high-quality and durable way to continue using proven PCI hardware – without compromising on system update. Additional Technical Specifications: PCIe standard: PCIe v1.1 x1-Lane (connection of the main card) Interfaces: 2 x PCI 32-bit, 33/66 MHz (provided on the additional card). Chipset: ASMedia ASM1083 (PCIe to PCI bridge) Power supply: SATA 15 pin power connector on the main card Driver: No driver installation required Supported Operating Systems: Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 (32/64-bit). Windows Server 2003 / 2008 / 2012 / 2016 Linux Kernel 2.4 or later Package includes: 1 x InLine PCIe x1 to 2 x PCI interface card (main card, with PCIe plug-in card). 1 x additional card with 2 x PCI slots. 1 x 60 cm connection cable between main card and additional card. 1 x SATA 15-pin power cable (approx. 5 cm) 1 x user manual in German/English.

• Expands modern systems with two classic PCI slots: Ideal for reusing proven PCI expansion cards in new PC or industrial systems.
• Reliable signal transmission via connection cable: 60 cm cable connects PCIe main card to additional card and ensures stable data communication.
• Flexible power supply via SATA 15 pin connector: Power supply directly to the main card - no additional adapter required.
• Driverless installation for maximum compatibility: OS automatically detects the card - no manual setup required.
• ASMedia bridge chip for high compatibility: The integrated ASM1083 chipset ensures stable PCIe to PCI implementation even under older operating systems.
